FU-MotDschl11 2,5_075
Motorcable shielded FU, Motor with/without break, and/or thermocouple with triangle bridge, optimated shield support
- Length
- 1,5 m, 3 m, 5 m
- Custom length? Quote in 24 h
- Assembly & testing 100% in Germany
Description

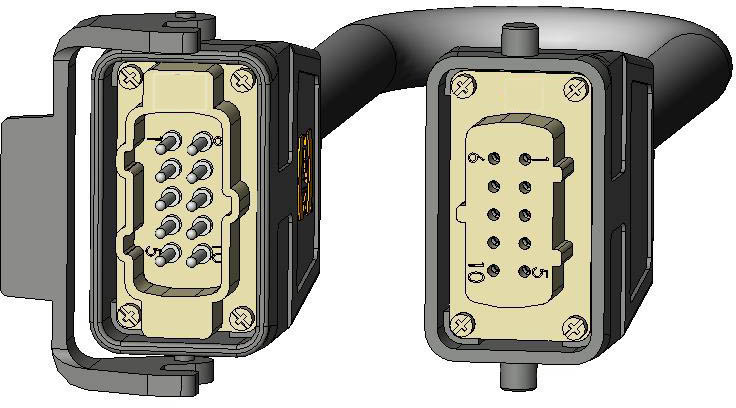

Seite 1: Motorstecker ISO23570-3 Typ 1(10 + PE),
Coupling housing (with bracket) straight, male insert
Seite 2: Motorstecker ISO23570-3 Typ 1(10 + PE),
Grommet housing straight, female insert
Leitungsaufbau 4 x 2,5mm2 +2x2x 0,75mm2,
PVC orange
Technical data of the cable: see
Datenblatt UPD00000600
Kupfergehalt 0,22 kg/Meter zuzuegl. Schnittzugabe
Leitungslaenge 1,5 m
Zuzuegl. Materialteuerungszuschlaege
Standardlaenge Artikel-Nr.
1,5 m 70009700000150
3,0 m 70009700000300
5,0 m 70009700000500
10,0 m 70009700001000
.
.
Order key for cable length
7xxxxxxx00XXXX
m cm
.
.
.
Used for
Devices with interfaces according to ISO 23570
z.B.Siemens ECOFAST
